OUSIMY Aluminum Engine Oil Cooler Filter Housing for Chrysler Dodge Jeep Ram 3.6L 2011-2016 | OE 68105583AF

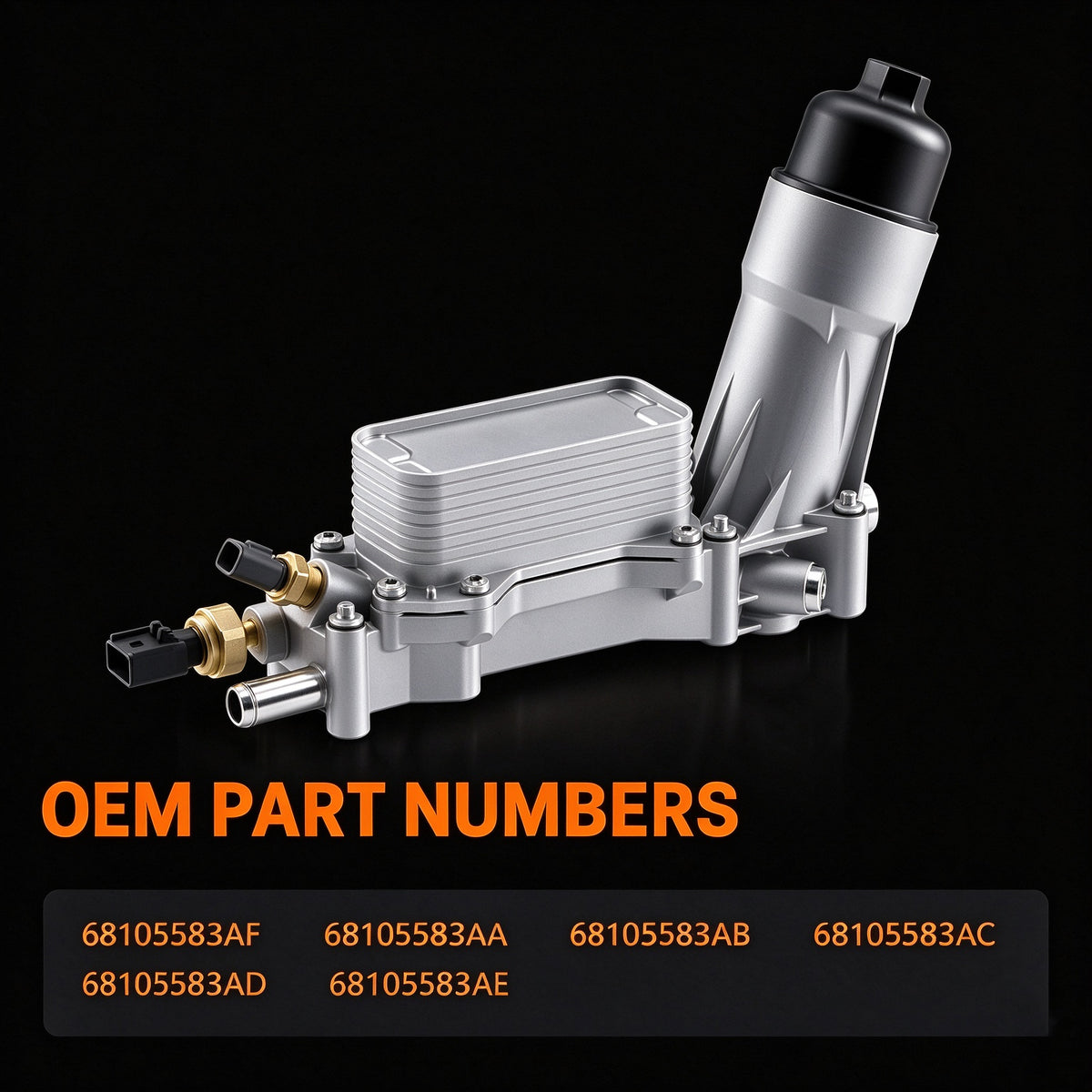

OE Number: 68105583AF

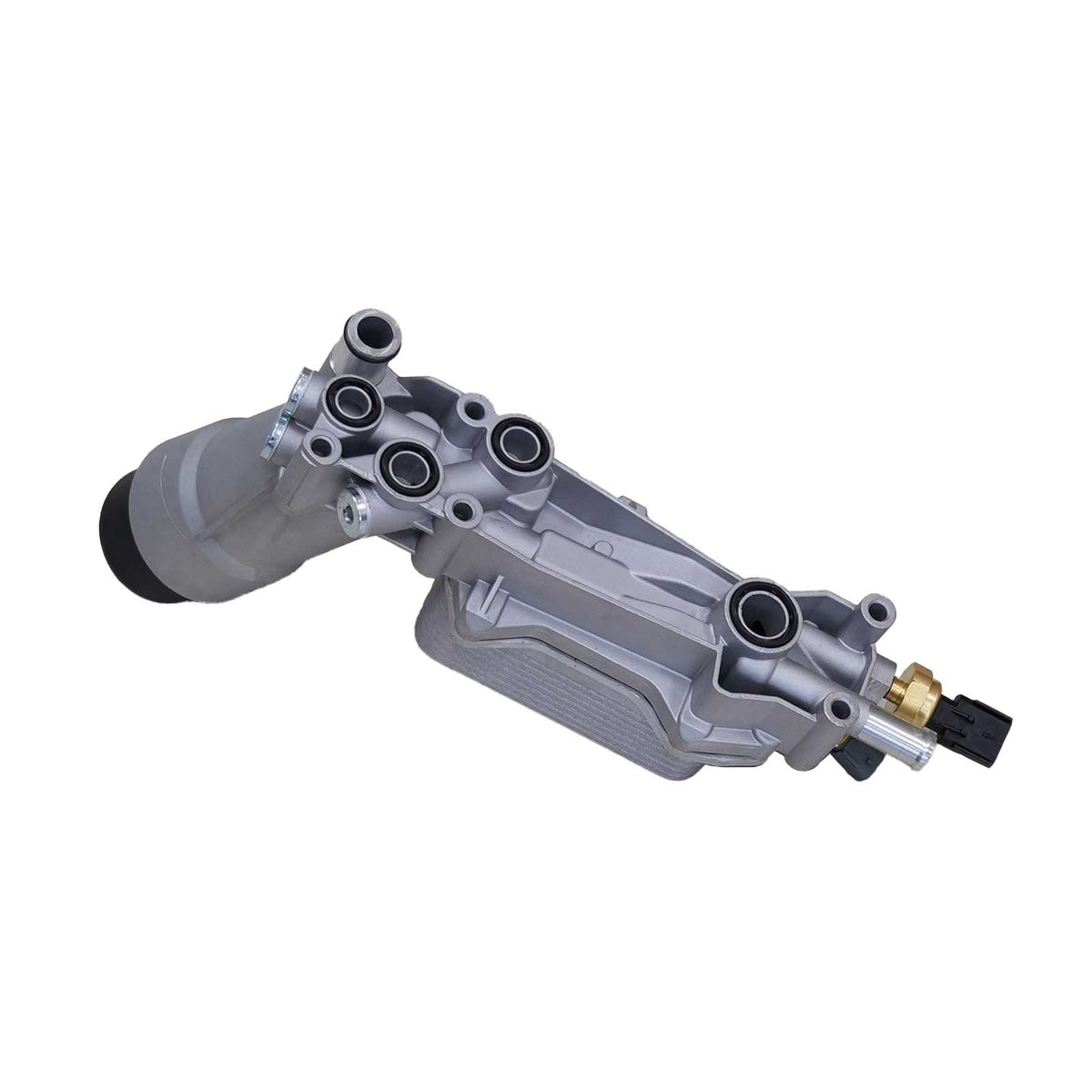

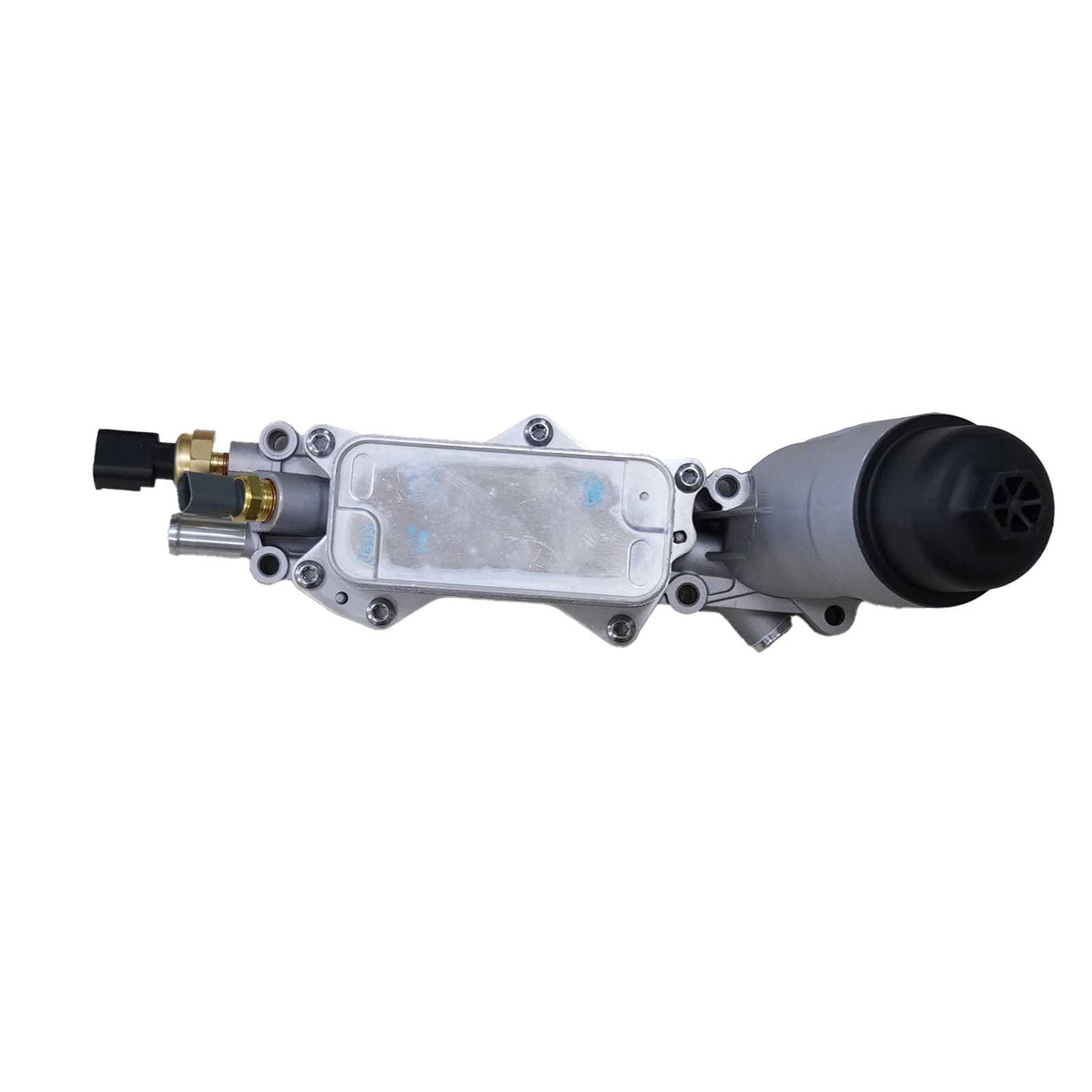

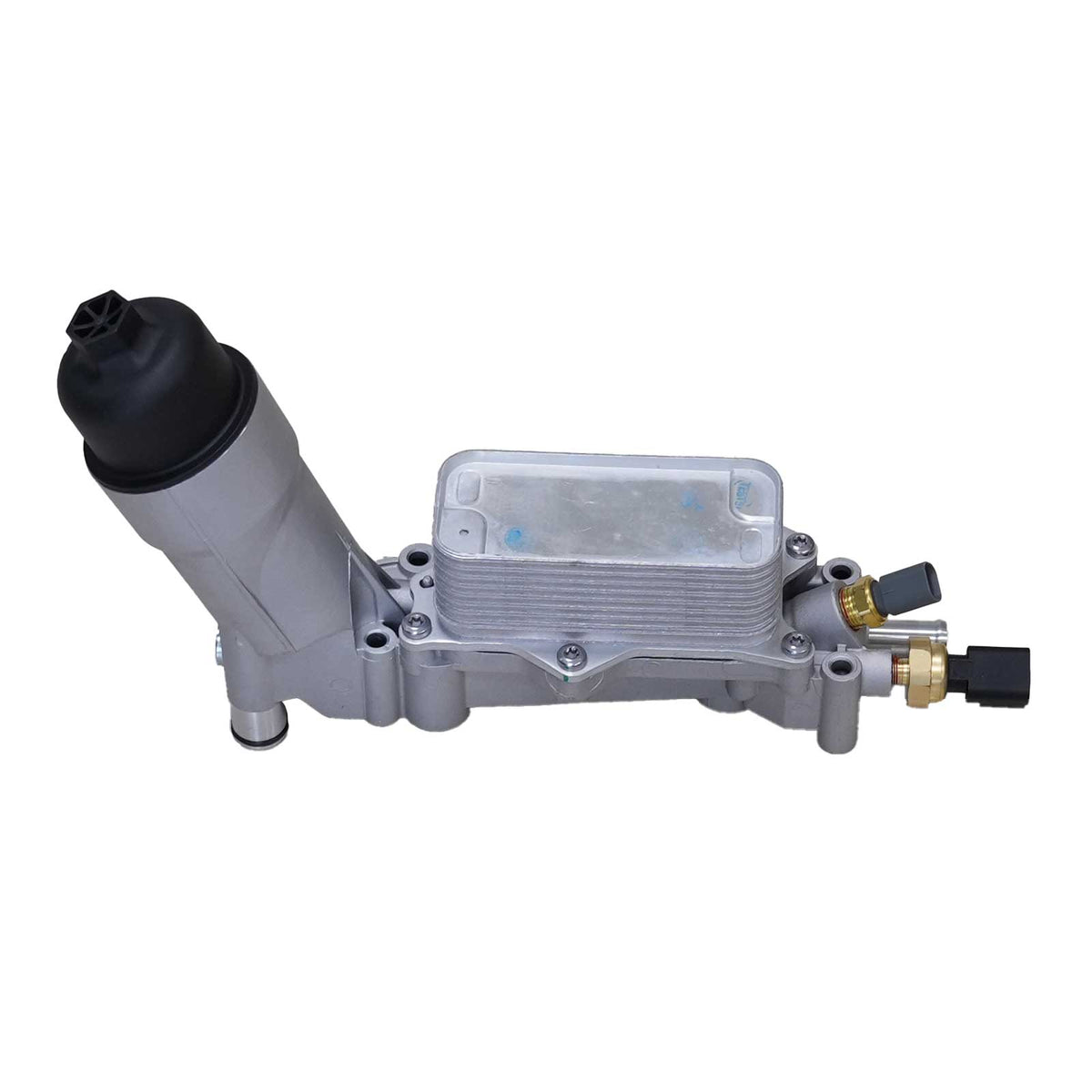

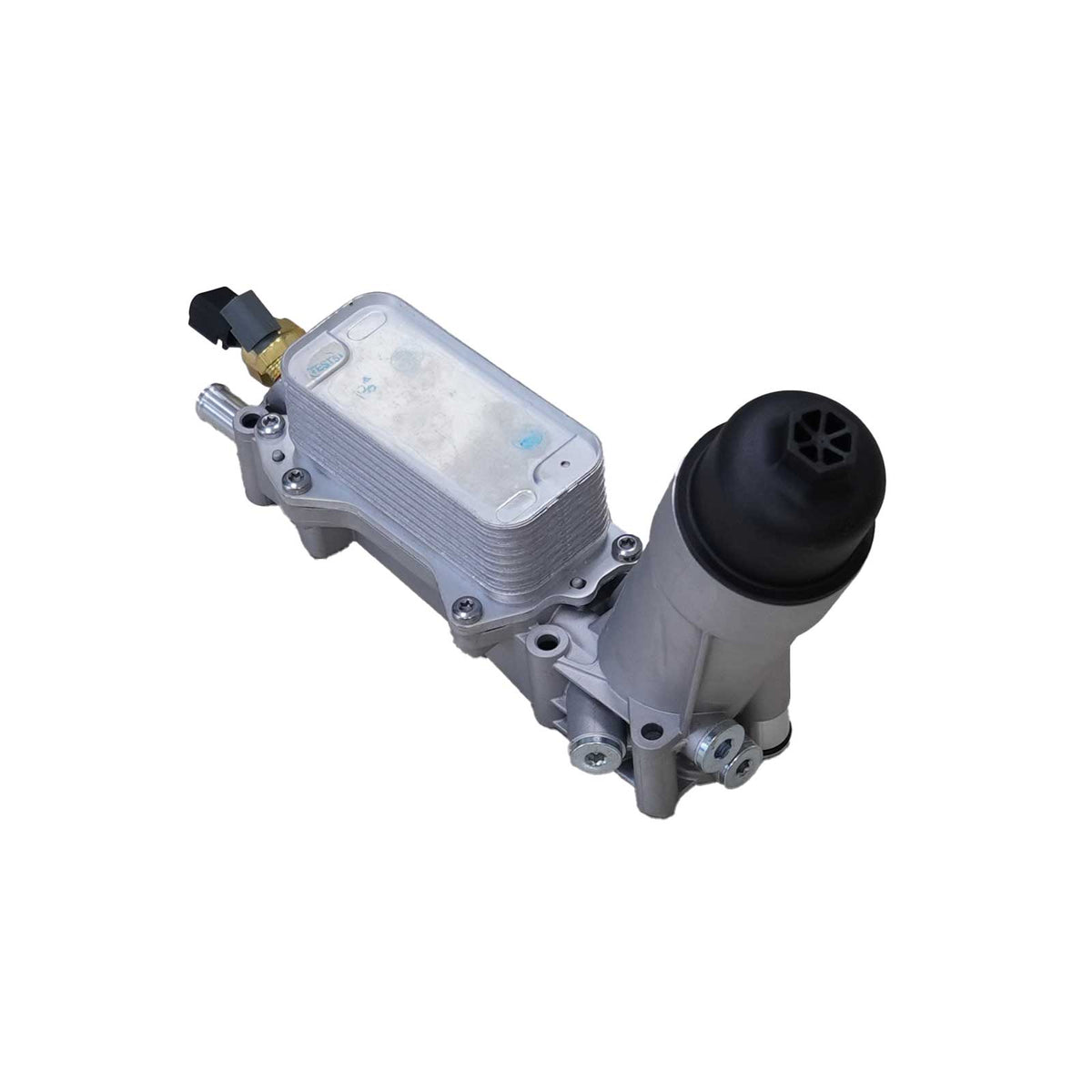

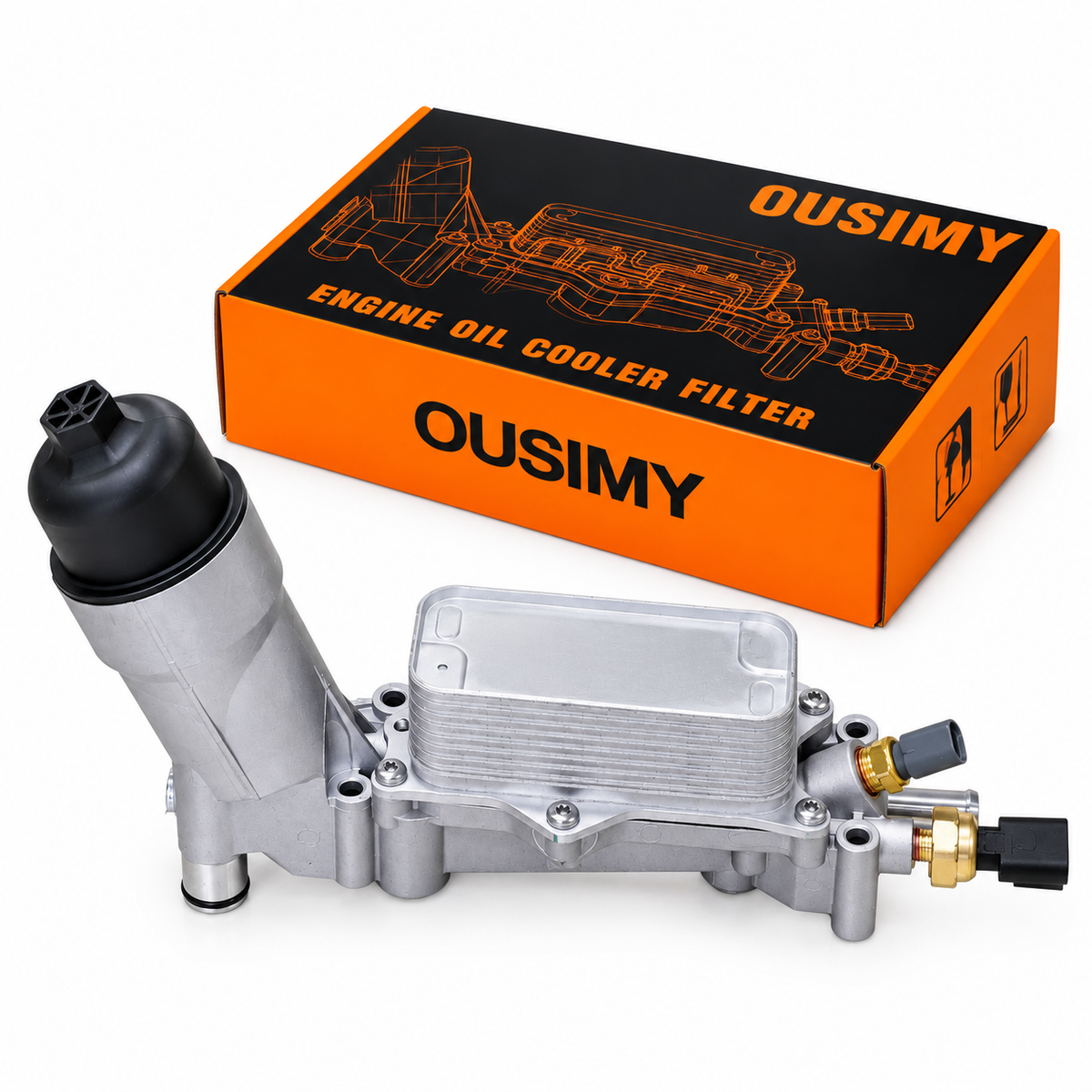

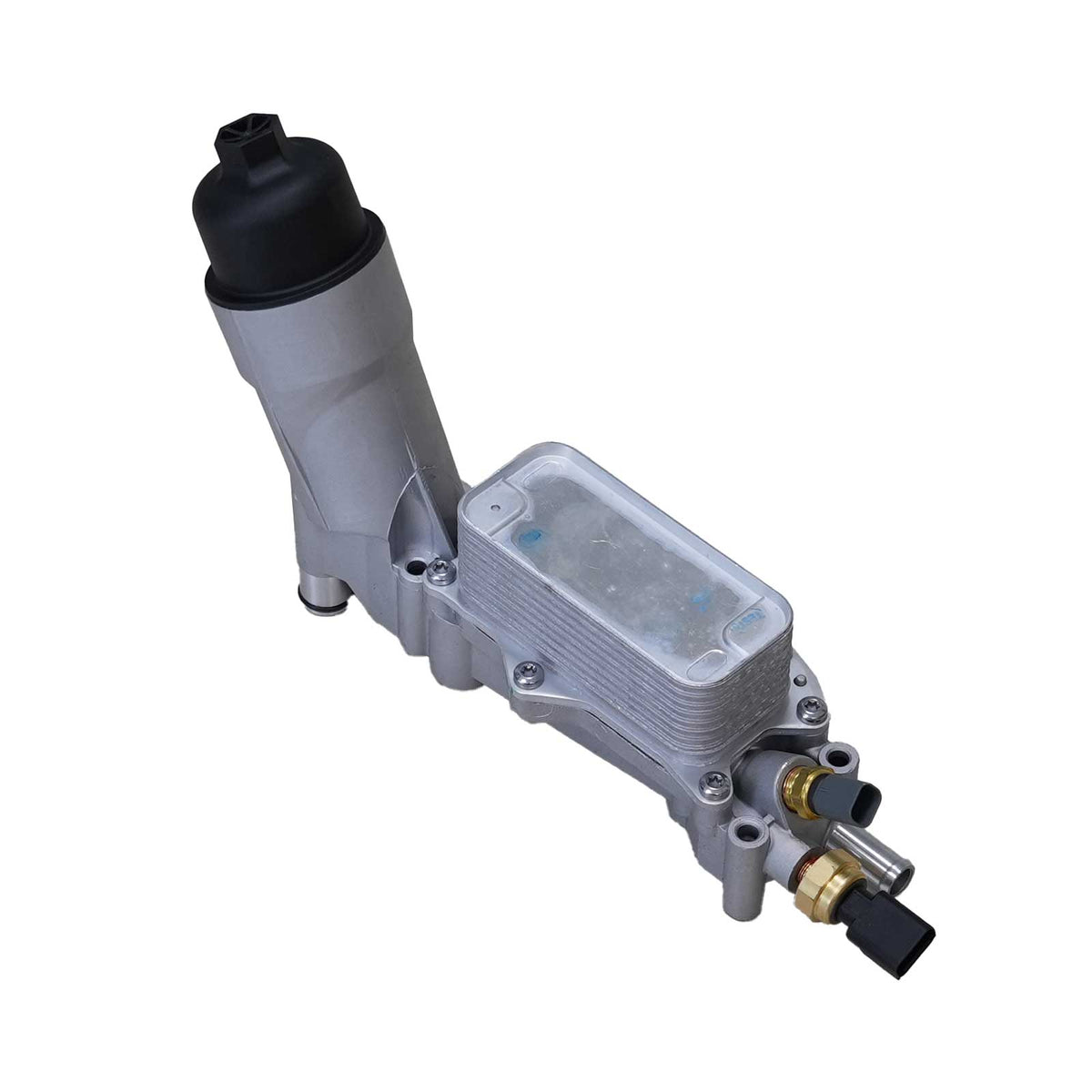

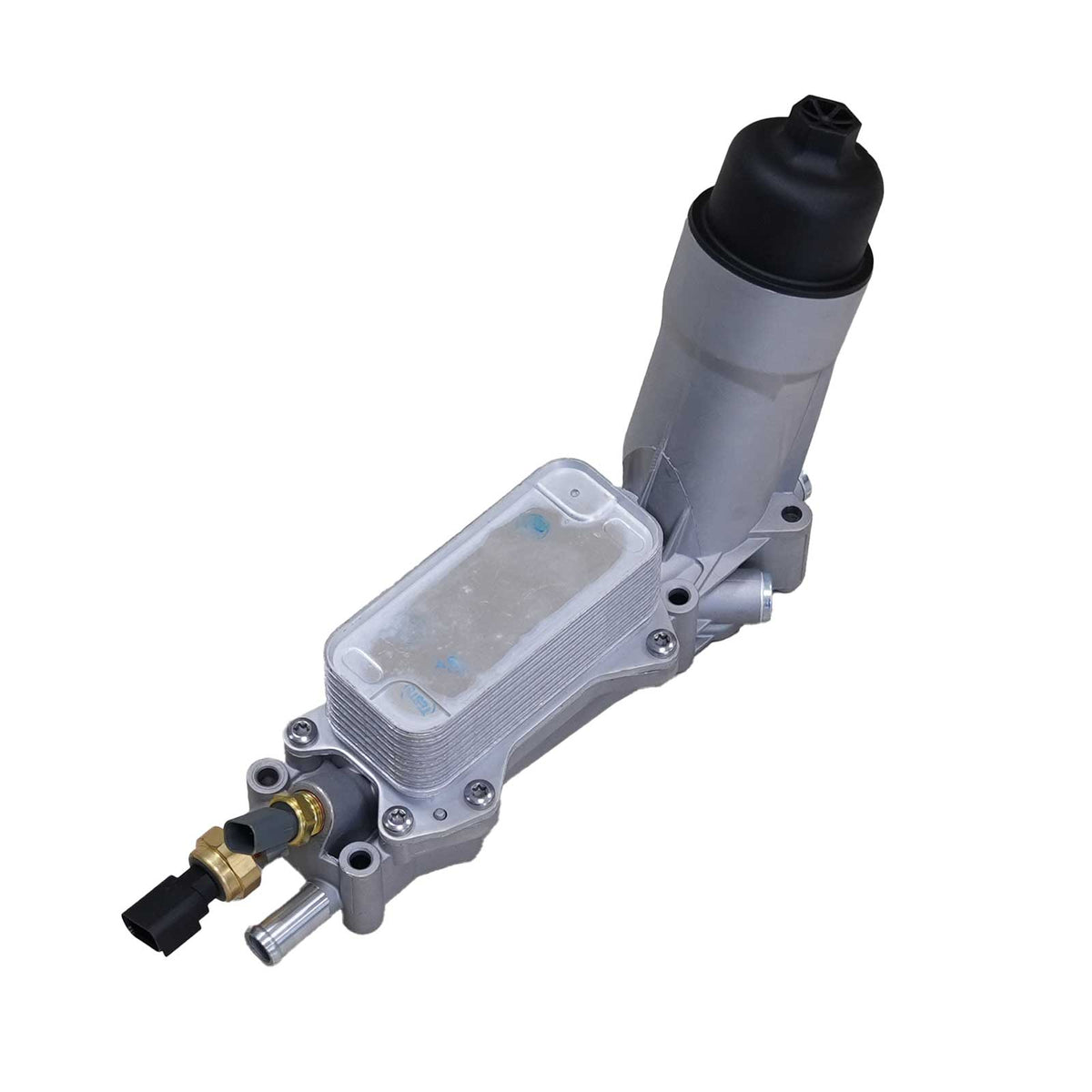

Aluminum Engine Oil Cooler Filter Housing for Chrysler, Dodge, Jeep and Ram 3.6L

Replace a cracked or leaking factory oil filter housing with this OUSIMY aluminum engine oil cooler filter housing designed for select Chrysler, Dodge, Jeep and Ram vehicles equipped with the 3.6L Pentastar V6 engine. The housing is installed in the engine valley beneath the intake manifold and integrates the oil filter housing with the engine oil cooler.

Product Details

• OE Number: 68105583AF

• Product Type: Engine Oil Cooler & Oil Filter Housing Assembly

• Material: Upgraded aluminum alloy

• Engine: 3.6L Pentastar V6

• Installation Position: Engine valley beneath the intake manifold

• Application: Select 2011-2016 Chrysler, Dodge, Jeep and Ram 3.6L models

• Replacement Type: Direct replacement for the applicable factory-style housing

Upgraded Aluminum Construction

The original plastic-style oil filter housing on the 3.6L Pentastar is exposed to continuous engine heat and repeated temperature changes. Over time, the housing may become brittle, deform or develop cracks that allow engine oil or coolant to leak.

This OUSIMY aluminum engine oil cooler housing uses a more durable metal construction designed to withstand the heat and operating conditions found in the engine valley. It provides a practical replacement solution when the original housing has reached the end of its service life.

The replacement housing is designed around the factory mounting location, helping experienced DIY mechanics and professional technicians complete the repair without modifying the engine.

Helps Address Common Oil Leak Problems

A damaged oil filter housing can cause oil to collect underneath the intake manifold and eventually run down the rear of the engine. Because the housing is located in a difficult-to-see area, the leak may be mistaken for another engine oil leak.

Replacing a cracked or leaking housing can help address:

• Oil leakage beneath the intake manifold

• Oil dripping from the rear of the engine

• Oil spots underneath the vehicle

• Burning oil smell from oil contacting hot engine components

• Cracked or brittle plastic housing

• Repeated leakage after replacing aging seals

• Oil or coolant leakage around the oil cooler assembly

If inspection confirms that the housing itself is cracked or damaged, replacing the complete assembly can provide a more reliable repair than repeatedly replacing individual seals.

Diagnostic / Fault Code Information

A cracked or leaking oil cooler filter housing is a mechanical problem and does not normally generate a dedicated OBD-II fault code.

If the oil leak has caused low engine oil pressure or affected the oil pressure sensor system, the vehicle may store codes such as P0520, P0521, P0522, P0523 or P0524, depending on the vehicle and the actual fault condition.

These codes should be properly diagnosed before replacing the housing. An oil-pressure-related code alone does not confirm that the oil filter housing is defective.

Installation

The housing is positioned beneath the intake manifold, so installation requires removal of the intake components to access the original assembly.

For a proper repair:

1. Confirm your vehicle, engine and OE number before ordering.

2. Remove the intake manifold and related components according to the applicable service procedure.

3. Remove the original oil cooler filter housing.

4. Thoroughly clean the mounting surface and inspect surrounding components.

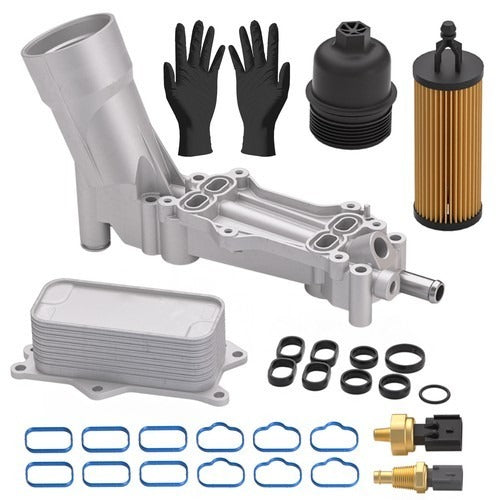

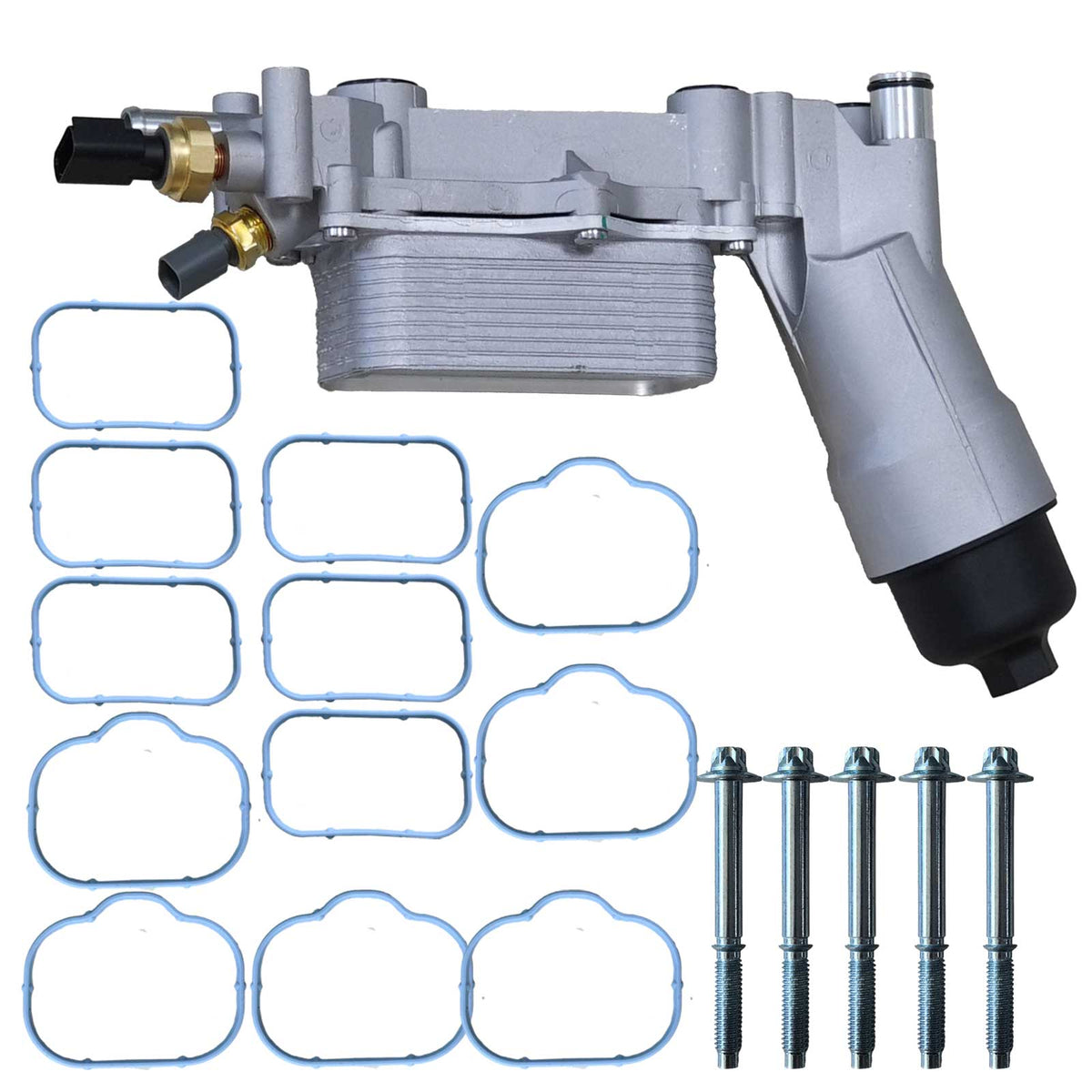

5. Install the replacement housing and applicable seals or gaskets.

6. Reassemble the intake system and refill the required fluids.

7. Start the engine and inspect the area carefully for oil or coolant leaks.

Professional installation is recommended if you do not have previous engine repair experience.

Shipping & Warranty

• Free Shipping

• Fast order processing

• Ships directly from our warehouse in China

• Tracking information provided after shipment

• Warranty support available

• Customer support for fitment and installation questions

• DIY-friendly replacement for experienced home mechanics

Vehicle Fitment

Chrysler

• 2011-2016 Chrysler 200 — 3.6L V6

• 2011-2016 Chrysler 300 — 3.6L V6

• 2011-2016 Chrysler Town & Country — 3.6L V6

Dodge

• 2011-2014 Dodge Avenger — 3.6L V6

• 2011-2016 Dodge Challenger — 3.6L V6

• 2011-2016 Dodge Charger — 3.6L V6

• 2011-2015 Dodge Durango — 3.6L V6

• 2011-2016 Dodge Grand Caravan — 3.6L V6

• 2011-2016 Dodge Journey — 3.6L V6

Jeep

• 2011-2015 Jeep Grand Cherokee — 3.6L V6

• 2012-2016 Jeep Wrangler — 3.6L V6

Ram

• 2013-2016 Ram 1500 — 3.6L V6

• 2012-2013 Ram C/V — 3.6L V6

• 2014-2016 Ram ProMaster 1500 — 3.6L V6

• 2014-2016 Ram ProMaster 2500 — 3.6L V6

• 2014-2016 Ram ProMaster 3500 — 3.6L V6

Important Fitment Note: Compatibility can vary by engine configuration, production date and original equipment number. Please verify OE 68105583AF and your vehicle's 3.6L V6 application before ordering.

The OUSIMY aluminum engine oil cooler filter housing provides a durable replacement solution for compatible Chrysler, Dodge, Jeep and Ram 3.6L applications when the original housing is cracked, leaking or damaged.
